Galvex 6x36 Warrington-Seale IWRC Galvanised Wire Rope
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.

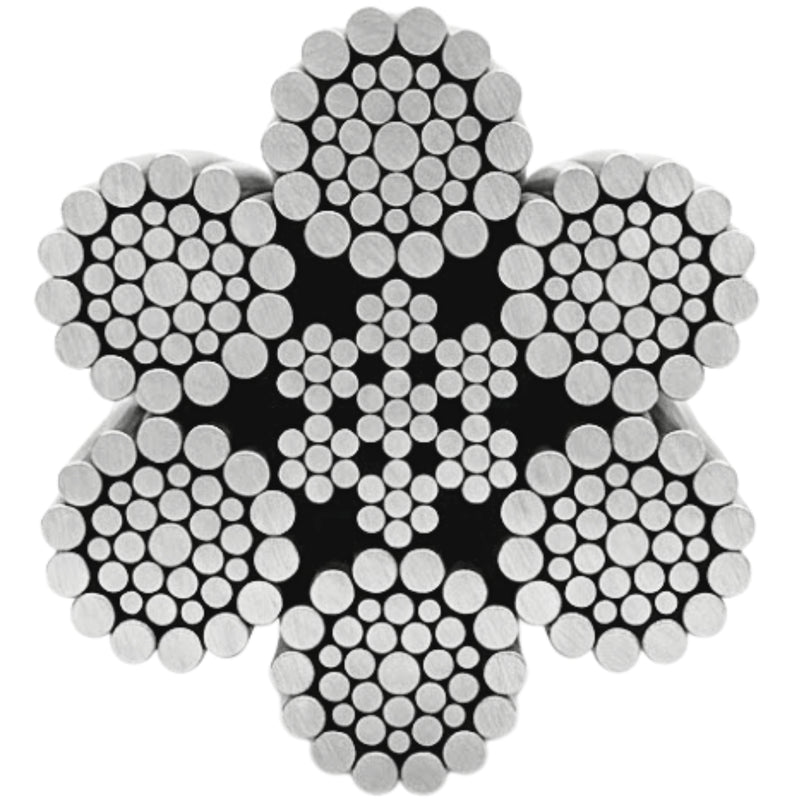

Galvex 6x36 Warrington-Seale construction with independent wire rope core (IWRC), Grade 1960 MPa, hot-dip galvanised.
Choosing your diameter and length
Pick your diameter by the Minimum Breaking Force (MBF) your job needs, then pick your length: a metre cut to size, a 100m coil, or the full reel.
Minimum Breaking Force by diameter
| Diameter | MBF (kN) |
|---|---|
| 8mm | 44.7kN |
| 10mm | 69.8kN |
| 12mm | 100.0kN |
| 13mm | 118.0kN |
| 14mm | 137.0kN |
| 16mm | 179.0kN |
| 18mm | 226.0kN |
| 20mm | 279.0kN |
| 22mm | 338.0kN |
| 24mm | 402.0kN |
| 26mm | 472.0kN |
| 28mm | 547.0kN |
Minimum Breaking Force is not the allowable Working Load Limit.
8mm to 14mm are sold on 1,000m reels. 16mm to 28mm are sold on 500m reels. All diameters are also sold by the 100m coil or the metre cut to size. Not sure which diameter suits your job? Call SLE before you order, guessing is expensive when it's rope.
Certificates and compliance
Certification and test-certificate availability varies by product. Check the product details or ask SLE before ordering.
Delivery and pickup
Need help with delivery or pickup for heavy or awkward gear? Contact SLE before ordering and we'll confirm the practical option.
Inspection support
SLE also provides inspection, testing and compliance support after the sale. Book an inspection
