Galvex 7x19 Galvanised Wire Rope
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.

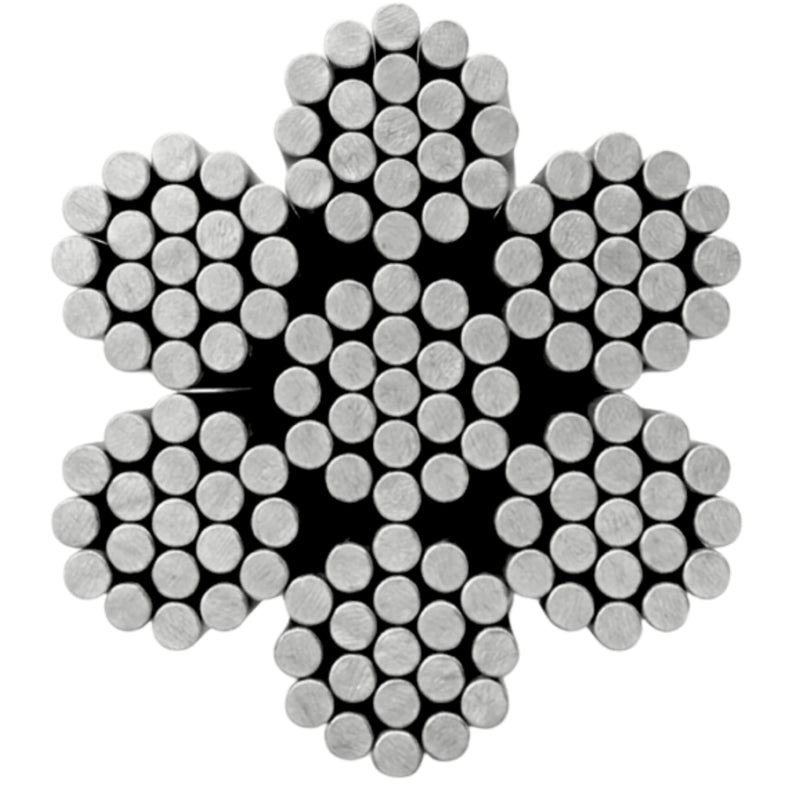

Galvanised 7x19 wire rope, Grade G2070, hot-dip galvanised. The 7x19 construction (7 strands of 19 wires) is more flexible than 7x7 at the same diameter, for jobs where the rope needs to run over sheaves or pulleys.
Choosing your diameter and length
Pick your diameter by the Minimum Breaking Load (MBL) your job needs, then pick your length: a metre cut to size, a 100m coil, or the full 1,000m reel.
Minimum Breaking Load by diameter
| Diameter | MBL (kN) |
|---|---|
| 3.2mm | 7.05kN |
| 4.0mm | 11.20kN |
| 5.0mm | 17.40kN |
| 6.0mm | 25.40kN |
| 6.5mm | 29.30kN |
| 8.0mm | 43.90kN |
| 10.0mm | 68.70kN |
| 12.0mm | 98.90kN |
| 14.0mm | 125.59kN |
Minimum Breaking Load is not the allowable Working Load Limit.
14.0mm is sold by the 100m coil or the full 1,000m reel. All other diameters are also sold by the metre cut to size. Not sure which diameter suits your job? Call SLE before you order, guessing is expensive when it's rope.
Certificates and compliance
Certification and test-certificate availability varies by product. Check the product details or ask SLE before ordering.
Delivery and pickup
Need help with delivery or pickup for heavy or awkward gear? Contact SLE before ordering and we'll confirm the practical option.
Inspection support
SLE also provides inspection, testing and compliance support after the sale. Book an inspection
