hamma Thimbles G316
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.

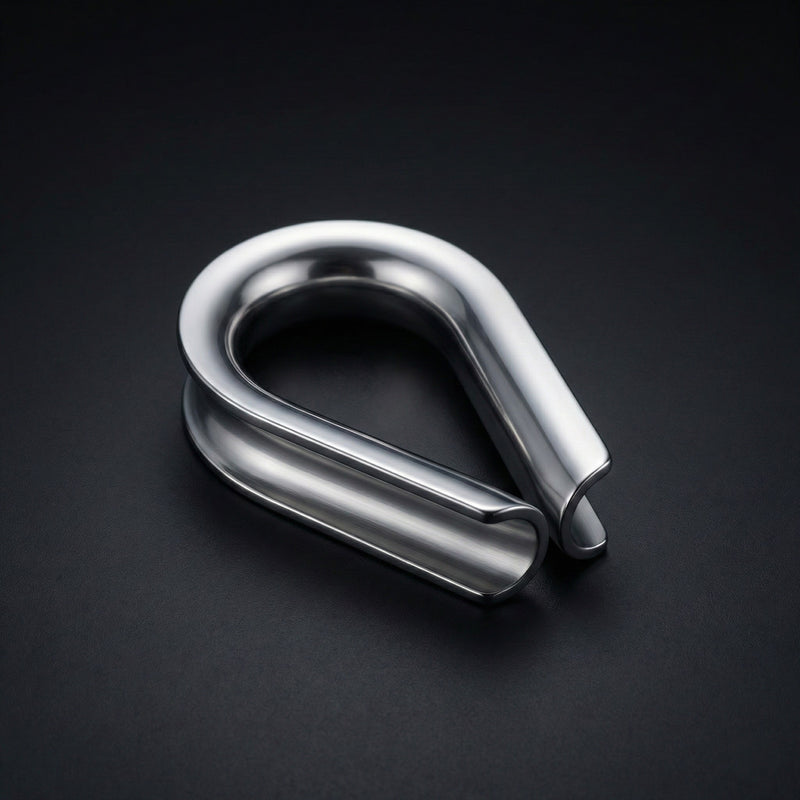

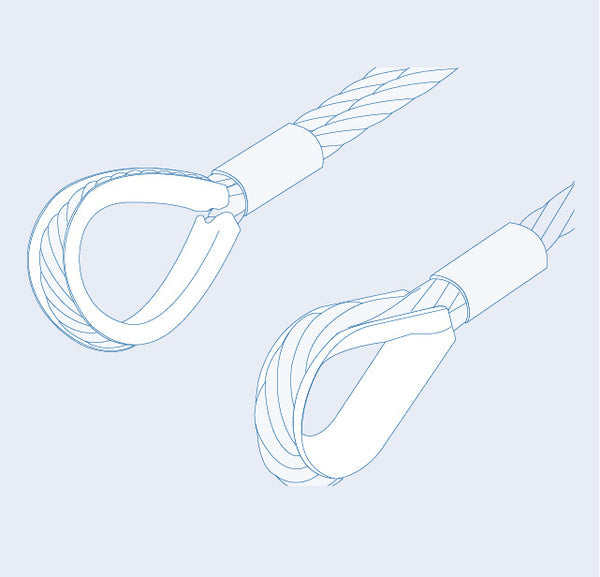

hamma Standard Thimble, SF234U. Grade 316 stainless steel (SS316). Fits inside a wire rope eye splice or termination to protect the rope from tight bending and contact wear at the exact point it needs it most.
A thimble carries no load rating of its own, its job is to protect the rope's bend radius, not to add strength to the assembly. Sold in packs of 10.
See the product image for the B, L and T dimension reference points used in the table below.
| SKU | Size | B | L | T |
|---|---|---|---|---|
| HM-6234-0002 | 2mm | 10mm | 25mm | 0.8mm |
| HM-6234-0003 | 3mm | 12.5mm | 28.5mm | 1mm |
| HM-6234-0004 | 4mm | 13mm | 33mm | 1.2mm |
| HM-6234-0005 | 5mm | 15.5mm | 36.5mm | 1.2mm |
| HM-6234-0006 | 6mm | 17mm | 40mm | 1.5mm |
| HM-6234-0008 | 8mm | 22.5mm | 51mm | 1.5mm |
| HM-6234-0010 | 10mm | 26mm | 58.5mm | 2mm |
| HM-6234-0012 | 12mm | 31mm | 68mm | 2mm |
| HM-6234-0014 | 14mm | 34mm | 74mm | 2.5mm |
| HM-6234-0016 | 16mm | 37.5mm | 83mm | 2.5mm |
| HM-6234-0018 | 18mm | 40mm | 92mm | 3mm |
| HM-6234-0020 | 20mm | 45mm | 104mm | 3.0mm |
| HM-6234-0022 | 22mm | 50.5mm | 115mm | 4mm |
| HM-6234-0025 | 25mm | 54mm | 125mm | 4mm |
This is hamma's Standard Thimble, SF234U. It is not the Closed End or Heavy Duty pattern.
