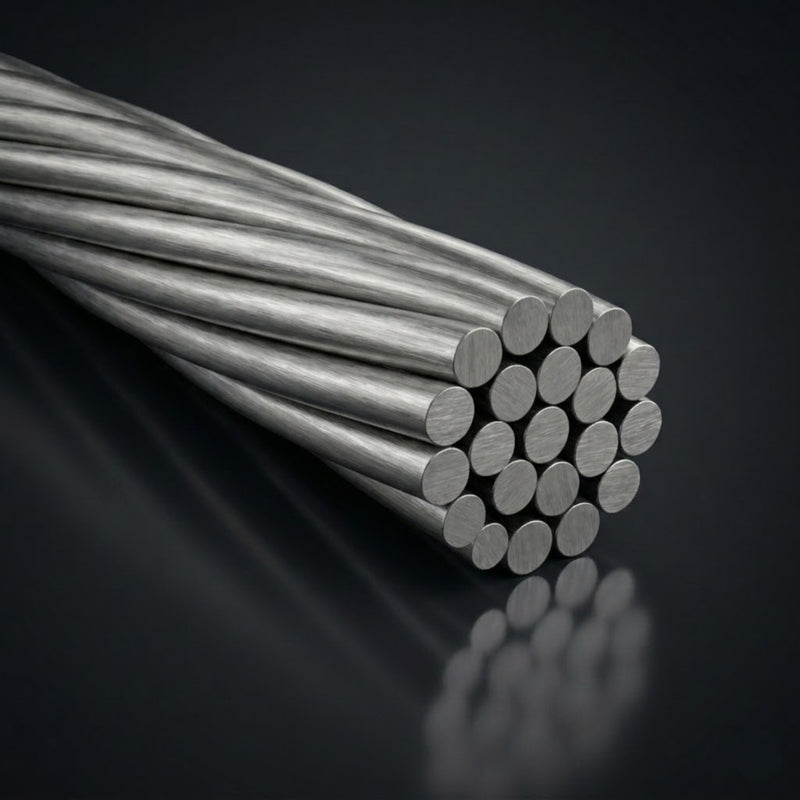

hamma X 1x19 G316 Stainless Wire Rope
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.
1x19 is the stiffest lay in the range, a single strand of 19 wires built to hold its shape rather than bend to it. It's a rigid wire, suitable for rigid rigging only: mast stays, balustrading, guy ropes and structural applications. It's not a running rope.
Terminal swaging with hamma Regatta fittings using hydraulic machines is the preferred termination method. Combine the two and the product quality is optimised.
Where it earns its place: architectural, shade structures and tensile membranes, marine, yacht rigging, offshore oil and gas, subsea engineering, mining, glass facade, and cable net structures.
Choosing your diameter and length
Pick your diameter by the Minimum Breaking Strength (MBS) your job needs, then pick your length: a metre cut to size, a 100m coil, or the full 305m reel.
Minimum Breaking Strength by diameter
| Diameter | MBS (kgf) | MBS (kN) |
|---|---|---|
| 1.0mm | 84kgf | 0.8kN |
| 1.5mm | 189kgf | 1.9kN |
| 2.0mm | 336kgf | 3.3kN |
| 2.5mm | 525kgf | 5.1kN |
| 3.0mm | 756kgf | 7.4kN |
| 3.5mm | 1,030kgf | 10.1kN |
| 4.0mm | 1,340kgf | 13.1kN |
| 5.0mm | 2,100kgf | 20.6kN |
| 6.0mm | 3,030kgf | 29.7kN |
| 7.0mm | 4,120kgf | 40.4kN |
| 8.0mm | 5,380kgf | 52.8kN |
| 9.0mm | 6,810kgf | 66.8kN |
| 10.0mm | 8,400kgf | 82.5kN |
| 11.0mm | 10,174kgf | 99.8kN |
| 12.0mm | 12,102kgf | 119.0kN |
| 14.0mm | 15,473kgf | 152.0kN |
| 16.0mm | 21,500kgf | 211.0kN |
| 19.0mm | 30,300kgf | 298.0kN |
| 22.0mm | 40,687kgf | 399.0kN |
Minimum Breaking Strength is not the allowable Working Load Limit.
Sold by the metre cut to size, by the 100m coil, or the full 305m reel. Not sure which diameter suits your job? Call SLE before you order, guessing is expensive when it's rope.
Certificates and compliance
Certification and test-certificate availability varies by product. Check the product details or ask SLE before ordering.
Delivery and pickup
Need help with delivery or pickup for heavy or awkward gear? Contact SLE before ordering and we'll confirm the practical option.
Inspection support
SLE also provides inspection, testing and compliance support after the sale. Book an inspection
