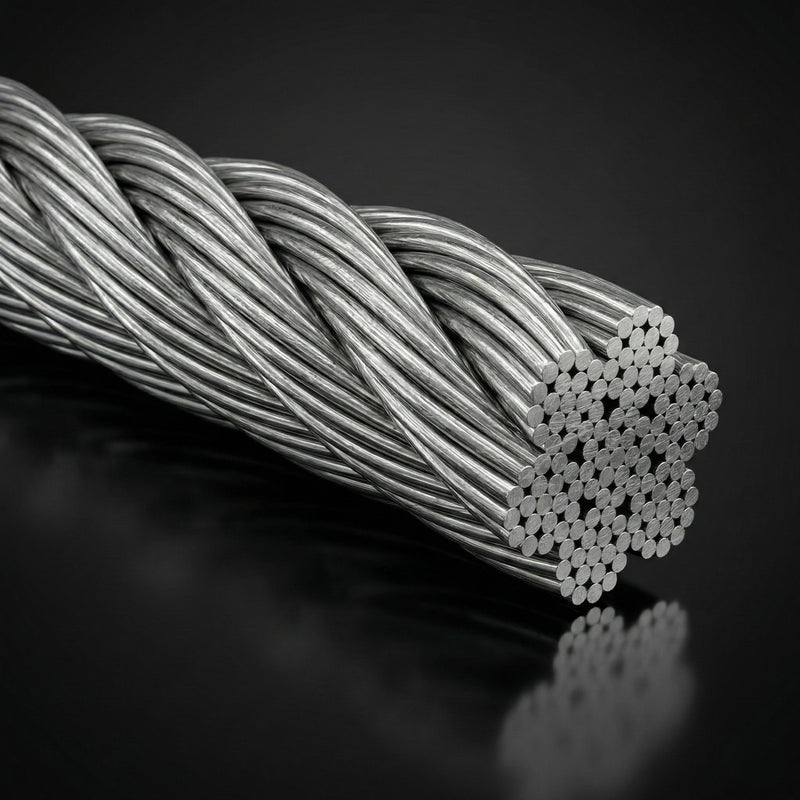

hamma X 7x19 G316 Stainless Wire Rope
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.
7x19 means seven strands of nineteen wires each, the most flexible common wire rope construction. That flexibility is the whole point: it bends easily around a thimble for a clean eye termination, and it's the one to reach for on anything that moves, like fixed rigging or limited working rope such as a boat winch.
G316 is the marine-grade stainless. Reach for it around salt water, weather, or anywhere corrosion is the enemy: balustrading, shade structures and tensile membranes, marine and yacht rigging, steering cables, offshore oil and gas, mining, cable net structures, irrigation bore pump cables.
Choosing your diameter and length
Pick your diameter by the Minimum Breaking Strength (MBS) your job needs, then pick your length: a metre cut to size, a 100m coil, or the full 305m reel.
Minimum Breaking Strength by diameter
| Diameter | MBS (kgf) | MBS (kN) |
|---|---|---|
| 2.0mm | 239kgf | 2.3kN |
| 2.5mm | 373kgf | 3.7kN |
| 3.0mm | 538kgf | 5.3kN |
| 3.5mm | 732kgf | 7.2kN |
| 4.0mm | 956kgf | 9.4kN |
| 5.0mm | 1,490kgf | 14.6kN |
| 6.0mm | 2,105kgf | 20.6kN |
| 7.0mm | 2,800kgf | 27.4kN |
| 8.0mm | 3,400kgf | 33.3kN |
| 10.0mm | 5,310kgf | 52.1kN |
| 12.0mm | 7,650kgf | 75.0kN |
| 14.0mm | 10,400kgf | 102.0kN |
| 16.0mm | 13,600kgf | 133.0kN |
| 19.0mm | 19,300kgf | 189.3kN |
| 20.0mm | 21,210kgf | 208.0kN |
| 22.0mm | 25,700kgf | 252.0kN |
| 24.0mm | 30,600kgf | 300.0kN |
| 26.0mm | 36,000kgf | 353.0kN |
| 28.0mm | 41,800kgf | 409.0kN |
| 32.0mm | 54,500kgf | 535.0kN |
Minimum Breaking Strength is not the allowable Working Load Limit.
Sold by the metre cut to size, by the 100m coil, or the full 305m reel. Not sure which diameter suits your load? Call SLE before you order, guessing is expensive when it's rope.
Certificates and compliance
Certification and test-certificate availability varies by product. Check the product details or ask SLE before ordering.
Delivery and pickup
Need help with delivery or pickup for heavy or awkward gear? Contact SLE before ordering and we'll confirm the practical option.
Inspection support
SLE also provides inspection, testing and compliance support after the sale. Book an inspection
