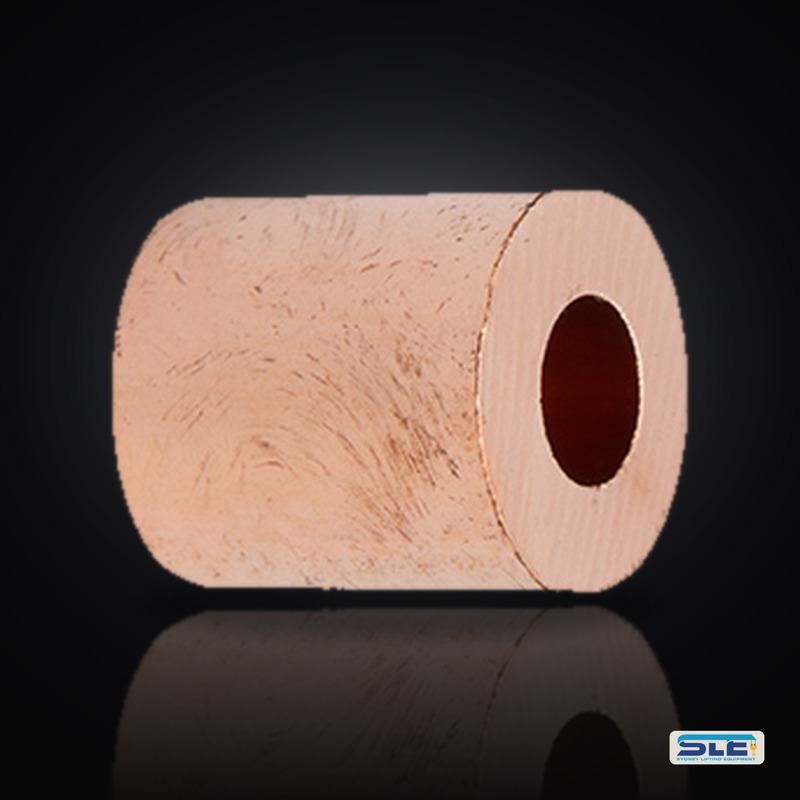

Nicopress Copper Stop Ferrules
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.
Plain-copper stop sleeves (often called stop ferrules) for finishing wire rope ends. Get the size wrong and the sleeve won't seat, or your tool won't swage it properly, so check the cable size and stock number below before you order.
Mick's take: nobody wants a second freight run because the sleeve didn't match the tool in the shed. Check the table once and you're done.
Copper construction. Sold in packs of 10.
Match the sleeve to your wire diameter and to your swaging tool before you buy or swage. The tool, head or die you use has to be rated for the exact stock number listed against your size. If your tool isn't on the list below, check with Nicopress or call us before you swage.
| SKU | Cable size | Stock no. | Compatible tools, heads & dies | Pack qty |
|---|---|---|---|---|
| N12ST | 1.0-1.2mm | 871-12-B4 | Hand, single groove: 51-B4-887 or 31-B4 Hand, multi groove: 17-B4B or 3V-F6:X:M Bench, single groove: 51-B4-887 head Hydraulic: 3512 die 12-OVAL-B4; 635 die OVAL B4 Pneumatic: AT-B4 Battery: 5606 die 6-OVAL-B4; 5512/5612 die 12-OVAL-B4 |
10 |
| N16ST | 1.5mm | 871-1-C | Hand, single groove: 51-C-887 Hand, multi groove: 3V-F6:X:M, 32-VC-VG or 64-CGMP Bench, single groove: 51-C-887 head or 3-C-887 head Bench, multi groove: 64-CGMP head or 3V-CGMP head Hydraulic: 3512 die 12-OVAL-C; 635 die OVAL C Pneumatic: AT-C or AT-CGMP Battery: 5606 die 6-OVAL-C; 5512/5612 die 12-OVAL-C |
10 |
| N24ST | 2.0-2.5mm | 871-17-J (yellow) | Hand, multi groove: 51-MJ or 3-MJ Bench, multi groove: 51-MJ head or 3-MJ head Hydraulic: 3512 die 12-J; 635 die 871-J Pneumatic: AT-MJ Battery: 5606 die 6-J; 5512/5612 die 12-J |
10 |
| N32ST | 3.0-3.5mm | 871-18-J (red) | Hand, multi groove: 51-MJ or 3-MJ Bench, multi groove: 51-MJ head or 3-MJ head Hydraulic: 3512 die 12-J; 635 die 871-J Pneumatic: AT-MJ Battery: 5606 die 6-J; 5512/5612 die 12-J |
10 |
| N40ST | 4.0mm | 871-19-M | Hand, multi groove: 51-MJ or 3-MJ Bench, multi groove: 51-MJ head or 3-MJ head Hydraulic: 3512 die 12-1-M; 635 die 871-1-M Pneumatic: AT-MJ Battery: 5606 die 6-OVAL-M; 5512/5612 die 12-1-M |
10 |
| N48ST | 5.0mm | 871-20-M (black) | Hand, multi groove: 51-MJ or 3-MJ Bench, multi groove: 51-MJ head or 3-MJ head Hydraulic: 3512 die 12-1-M; 635 die 871-1-M Pneumatic: AT-MJ Battery: 5606 die 6-OVAL-M; 5512/5612 die 12-1-M |
10 |
These are plain-copper stop sleeves, not loop-forming sleeves. The two aren't interchangeable, and this tooling mapping is Nicopress's own for the 871-series copper range. It doesn't apply to other manufacturers' sleeves or tools.
Certificates and compliance
Certification and test-certificate availability varies by product. Check the product details or ask SLE before ordering.
Delivery and pickup
Need help with delivery or pickup for heavy or awkward gear? Contact SLE before ordering and we'll confirm the practical option.
