Nicopress Zinc Plated Copper Ferrules
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.

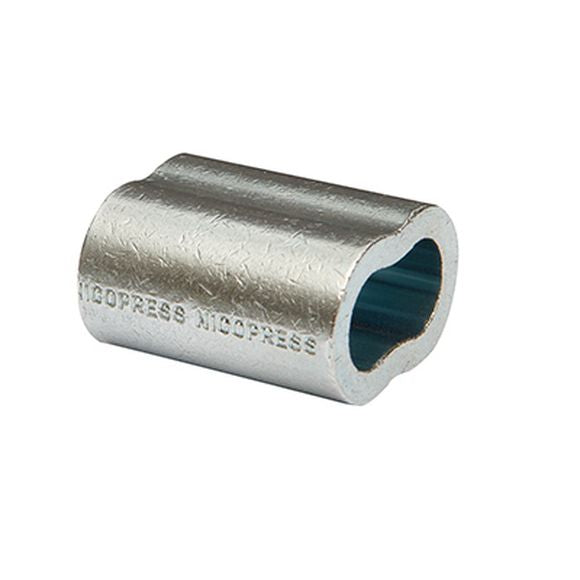

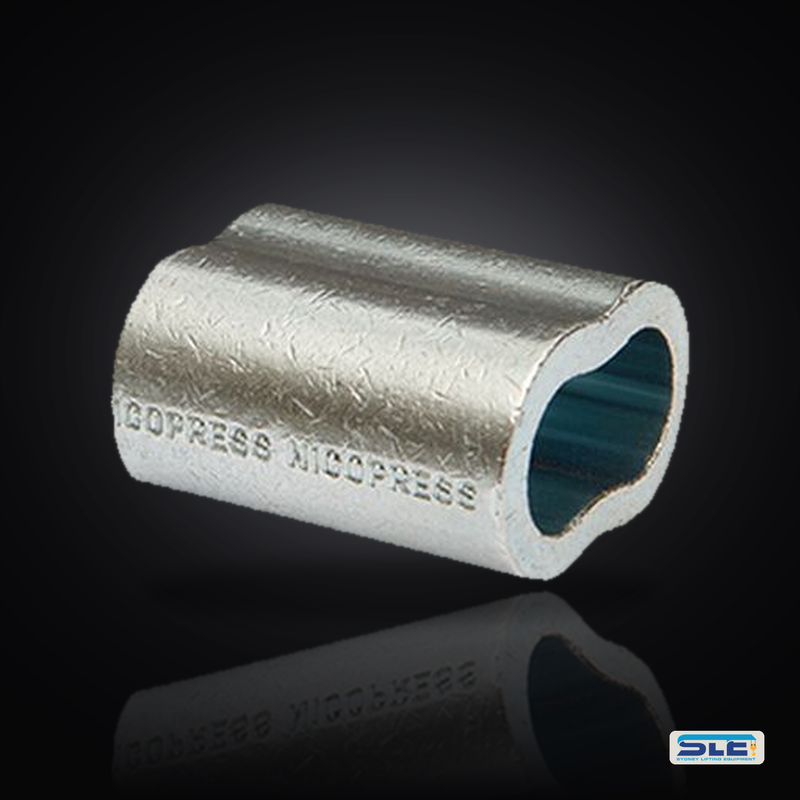

Zinc-plated copper oval sleeves (also called ferrules) for a Nicopress hand-swage termination. The sleeve does the job, but only if it's swaged with the matching tool, head, groove and die for that size, so check the table below before you order or swage.
Mick's take: the sleeve is the cheap part. Get the tooling wrong and you've wasted the expensive part of the job.
Zinc-plated copper construction. Sold in packs of 10.
Match the sleeve to your wire diameter and to your swaging tool before you buy or swage. The tool, head or die you use has to be rated for the exact stock number listed against your size. If your tool isn't on the list below, check with Nicopress or call us before you swage.
| SKU | Cable size | Stock no. | Compatible tools, heads & dies | Pack qty |
|---|---|---|---|---|
| N12C | 1.0-1.2mm | 28-11-B4 | Hand: 51-B4-887, 31-B4 / 17-B4B, 33V-CGB4 Bench: 51-B4-887 head Hydraulic: 12-OVAL-B4 (3512 die), OVAL B4 (635 die) Pneumatic: AT-B4 Battery: 6-OVAL-B4 (5606 die), 12-OVAL-B4 (5512/5612 die) |
10 |
| N16C | 1.5-2.0mm | 28-1-C | Hand: 51-C-887 / 33V-CGB4, 32-VC-VG, 64-CGMP Bench: 51-C-887 head / 64-CGMP head, 3V-CGMP head Hydraulic: 12-OVAL-C (3512 die), OVAL C (635 die) Pneumatic: AT-C, AT-CGMP Battery: 6-OVAL-C (5606 die), 12-OVAL-C (5512/5612 die) |
10 |
| N24C | 2.5mm | 28-2-G | Hand: 51-G-887 / 33V-CGB4, 32-VC-VG, 64-CGMP Bench: 51-G-887 head, 3-G-887 head / 64-CGMP head, 3V-CGMP head Hydraulic: 12-OVAL-G (3512 die), OVAL G (635 die) Pneumatic: AT-G, AT-CGMP Battery: 6-OVAL-G (5606 die), 12-OVAL-G (5512/5612 die) |
10 |
| N32C | 3.0-3.5mm | 28-3-M | Hand: 51-M-850 / 64-CGMP, 63V-XPM, 51-MJ, 3V-F6:X:M, 3-MJ Bench: 51-M-850 head, 3-M-850 head / 64-CGMP head, 63V-XPM head, 51-MJ head, 3V-CGMP head, 3V-F6:X:M head, 3-MJ head Hydraulic: 12-OVAL-M (3512 die), OVAL M (635 die) Pneumatic: AT-M, AT-CGMP, AT-XPM, AT-MJ Battery: 6-OVAL-M (5606 die), 12-OVAL-M (5512/5612 die) |
10 |
| N40C | 4.0mm | 28-4-P | Hand: 51-P-850, 3-P-850 / 64-CGMP, 63V-XPM Bench: 51-P-850 head, 3-P-850 head / 64-CGMP head, 63V-XPM head, 3V-CGMP head Hydraulic: 12-OVAL-P (3512 die), OVAL P (635 die) Pneumatic: AT-P, AT-CGMP, AT-XPM Battery: 6-OVAL-P (5606 die), 12-OVAL-P (5512/5612 die) |
10 |
| N48C | 5.0mm | 28-6-X | Hand: 51-X-850, 3-X-850 / 63V-XPM, 3V-F6:X:M Bench: 51-X-850 head, 3-X-850 head / 63V-XPM head, 3V-F6:X:M head Hydraulic: 12-OVAL-X (3512 die), OVAL X (635 die) Pneumatic: AT-X, AT-XPM, AT-X-F6 (requires accessory booster kit) Battery: 6-OVAL-X (5606 die), 12-OVAL-X (5512/5612 die) |
10 |
| N55C | 6.0mm | 28-8-F2 | Hand: 51-F2-850, 3-F2-850 Bench: 51-F2-850 head, 3-F2-850 head Hydraulic: 12-OVAL-F2 (3512 die), OVAL F2 (635 die) Pneumatic: AT-F2 Battery: 6-OVAL-F2 (5606 die), 12-OVAL-F2 (5512/5612 die) |
10 |
| N64C | 6.0mm / 6.4mm (1/4") / 7.0mm | 28-10-F6 | Hand: 3-F6-950 / 3V-F6:X:M Bench: 3-F6-950 head / 3V-F6:X:M head Hydraulic: 12-OVAL-F6 (3512 die), OVAL F6 (635 die) Pneumatic: AT-F6, AT-X-F6 (both require accessory booster kit) Battery: 6-OVAL-F6 (5606 die), 12-OVAL-F6 (5512/5612 die) |
10 |
| N80C | 8.0mm | 28-13-G9 | Hand: 3-G9-950 Bench: 3-G9-950 head Hydraulic: 12-OVAL-G9 (3512 die), OVAL G9 (635 die) Pneumatic: AT-G9 (requires accessory booster kit) Battery: 6-OVAL-G9 (5606 die); the source catalogue lists 6-OVAL-G9 again for the 5512/5612 die entry against this size, we've shown it exactly as printed rather than assume it should read 12-OVAL-G9 |
10 |
| N95C | 9.0-10.0mm | 28-23-H5 | Hand: 3-H5-950 Bench: 3-H5-950 head Hydraulic: 12-OVAL-H5 (3512 die), OVAL H5 (635 die) Battery: 6-OVAL-H5 (5606 die), 12-OVAL-H5 (5512/5612 die) No pneumatic tool listed for this size in the source. |
10 |
This tooling mapping is Nicopress's own, for the zinc-plated copper oval sleeve range. It doesn't apply to other manufacturers' sleeves or tools.
