SAHM Copper Ferrules
Prices include GST. 10% OFF automatically applied at checkout until 30 September.
Need help choosing?
Not sure which capacity, size, length or fitting suits the job? Ask SLE before ordering. We'll give you a straight answer.

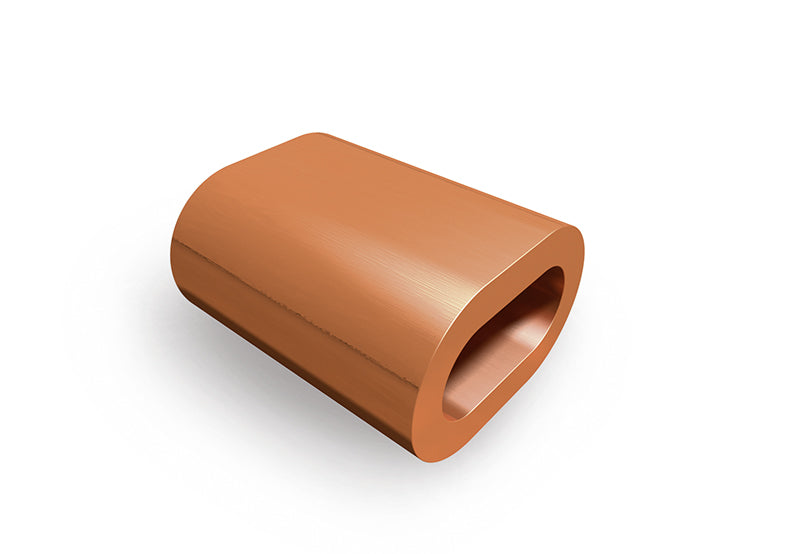

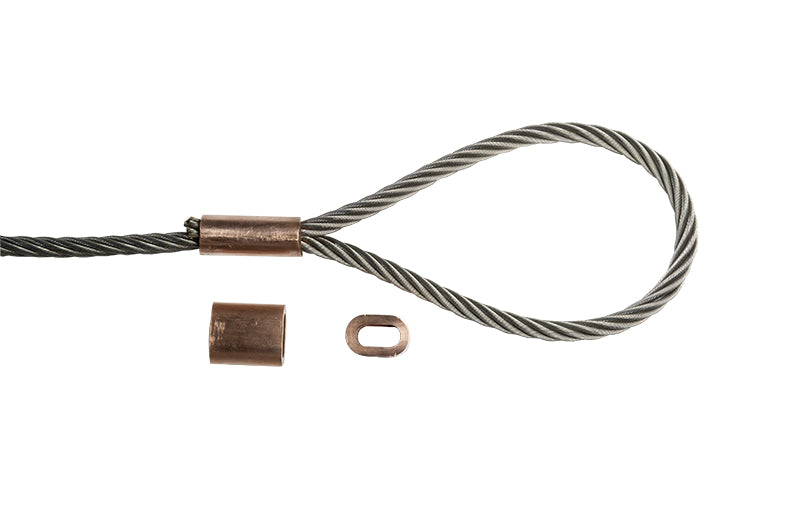

SAHM Copper Type Z swage ferrules. Real photographed product. Match the ferrule to both your wire's fibre-core and steel-core diameter, then confirm your press can hit the correct die before you buy or swage.
Copper construction. Sold in packs of 10.
| SKU | Fibre core | Steel core | Ferrule no. (die) | Pressed OD | Pack qty |
|---|---|---|---|---|---|
| C015 | 1.1-1.5mm | 0.5-1.0mm | 1.5 | 3mm | 10 |
| C020 | 1.6-2.0mm | 1.1-1.5mm | 2.0 | 4mm | 10 |
| C025 | 2.5-2.7mm | 1.6-2.0mm | 2.5 | 5mm | 10 |
| C030 | 2.8-3.2mm | 2.5-2.7mm | 3.0 | 6mm | 10 |
| C035 | 3.3-3.7mm | 2.8-3.2mm | 3.5 | 7mm | 10 |
| C040 | 3.8-4.3mm | 3.3-3.7mm | 4.0 | 8mm | 10 |
| C045 | 4.4-4.8mm | 3.8-4.3mm | 4.5 | 9mm | 10 |
| C050 | 4.9-5.4mm | 4.4-4.8mm | 5.0 | 10mm | 10 |
| C060 | 5.5-6.4mm | 4.9-5.4mm | 6.0 | 12mm | 10 |
| C065 | 6.5-6.9mm | 5.5-6.4mm | 6.5 | 13mm | 10 |
| C070 | 7.0-7.4mm | 6.5-6.9mm | 7.0 | 14mm | 10 |
| C080 | 7.5-8.4mm | 7.0-7.4mm | 8.0 | 16mm | 10 |
| C090 | 8.5-9.5mm | 7.5-8.4mm | 9.0 | 18mm | 10 |
| C100 | 9.6-10.5mm | 8.5-9.5mm | 10.0 | 20mm | 10 |
| C110 | 10.6-11.6mm | 9.6-10.5mm | 11.0 | 22mm | 10 |
| C120 | 11.7-12.6mm | 10.6-11.6mm | 12.0 | 24mm | 10 |
| C130 | 12.7-13.7mm | 11.7-12.6mm | 13.0 | 26mm | 10 |
| C140 | 13.8-14.7mm | 12.7-13.7mm | 14.0 | 28mm | 10 |
| C160 | 14.8-16.8mm | 13.8-14.7mm | 16.0 | 32mm | 10 |
| C180 | 16.9-18.9mm | 14.8-16.8mm | 18.0 | 36mm | 10 |
| C220 | 21.1-23.1mm | 19.0-21.0mm | 22.0 | 44mm | 10 |
This selection chart is SAHM's own, for the Copper Type Z ferrule range. Required swage pressure and pressed length are not stated by SAHM for this range and are not shown here.
Certificates and compliance
Certification and test-certificate availability varies by product. Check the product details or ask SLE before ordering.
